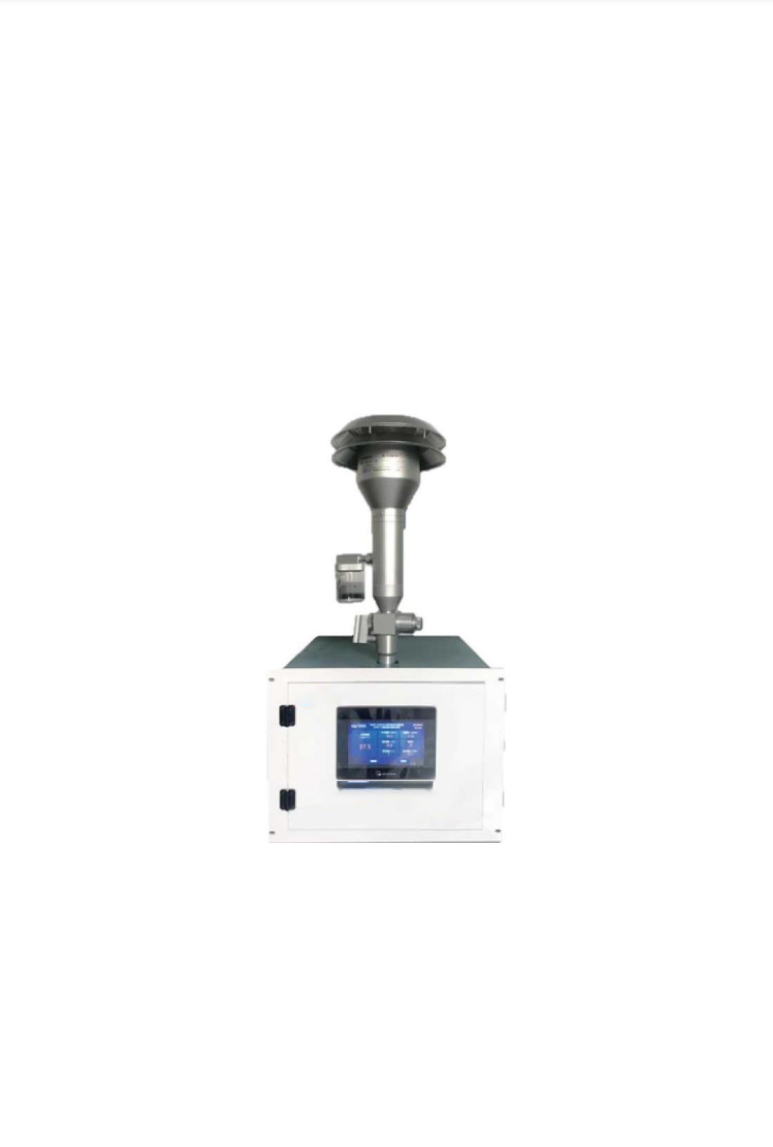

PMS-200 Automatic Atmospheric PM Analyzer uses the principle of β ray absorption. The advanced microprocessor control unit can continuously and automatically monitor the concentration of PM2.5 or PM10 particles in the atmosphere. The product is mainly composed of a particle cutting head, an intelligent heating device, β ray source, a counting unit, a paper feeding control unit, an air extraction unit, an embedded computer, and a data display.
|
PRINCIPLE |
β RAY METHOD |
|
|
INDEX |
Range |
0-1mg/m³ or 0-10mg/m³ |
|
Source |
C14 radioactive activity 60±15(μci) |
|
|
Precision |
≤5% |
|
|
Display Rate |
1μg/m3 |
|
|
Lower Detectable Limit |
5μg/m3 |
|
|
Deviation |
≤±2% (norm 16.67L/min) |
|
|
Sampling Flow Stability |
≤±2% workflow /24h |
|
|
Sampling Period |
≤1h(settable time) |
|
|
Sampling Flow |
16.67L/min |
|
|
Lever |
≤10% |
|
|
Filter Paper |
Filter Paper |
Glass fiber, width 40mm, service time 1 month (1h cycle) |
|
Port |
Connection Port |
RS232、RS485、4~20mA、GPRS(opt) |
|
Data Storage |
At least a year |
|
- Independent patented technology with high measurement accuracy;
- Automatic calibration each hour with fast and simple inspection tools;
- Using special alumina material with low thermal deformation coefficient; ·
- Higher precision sensors display environmental parameters in real time;
- High precision flow system, in which the flow setting is 16.7 L / min, and the flow can be customized;
- The high-precision heater automatically controls the relative humidity during sampling;
- A variety of digital communication modes and analog signal interfaces can adapt to the connection of various external equipment;
- Convenient installation and maintenance, simple operation, low noise, and low operation cost which can work unattended for more than 60 days
