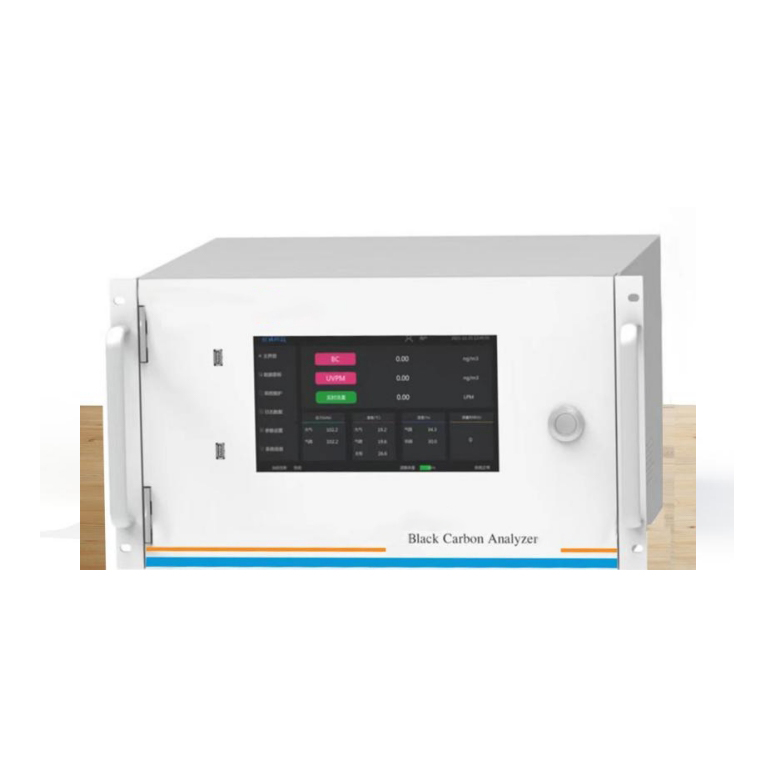

Black Carbon Analyzer

Product Introduction

Black carbon aerosols typically have a particle size of less than 2.5 micrometers and are an important component of atmospheric aerosols. They exert unique influences on the atmospheric environment, participating in heterogeneous atmospheric chemical processes and accumulating in modal forms. Due to the direct and indirect effects of black carbon aerosols on climate, air quality, and human health, they have garnered increasing attention from scientists and have become a focal point in current international atmospheric chemistry research. Therefore, long-term continuous monitoring of black carbon aerosols is essential.

The BC-100 Multispectral Black Carbon Monitor is based on the optical attenuation method, utilizing the different absorption characteristics of black carbon aerosols adsorbed on a strip of quartz filter paper across various optical wavelengths to achieve total monitoring of black carbon aerosol concentrations.

Categories

Measurement Range 0 to 1000 μg/m³
Light Source Wavelength 10 bands (from ultraviolet to infrared)
Detection Limit ≤ 5 ng/m³ (at 2 L/min)
Sampling Flow Rate Standard flow rate of 2 L/min
Measurement Interval Adjustable from 1 to 60 minutes
Data Storage Duration Stores data at one-minute intervals for at least two years
Filter Paper Type Special fiberglass tape or quartz tape
  1. Real-time Monitoring: Monitoring intervals can be set from 1 to 60 minutes.
  2. Humidity Control System: Equipped with a humidity control system to minimize the impact of humidity on measurements.
  3. User-Friendly Operation: Easy to operate, reliable performance, low maintenance requirements, and capable of automatically resuming observations after a power outage.
  4. Multiband Light Source: Utilizes a light source across 10 bands to measure aerosol optical absorption, ranging from ultraviolet to infrared, with a time resolution of up to 1 minute.
  5. Comprehensive Optical Absorption Measurement: Full-band measurement of aerosol optical absorption provides a comprehensive overview of aerosol optical properties, helping to eliminate interference from other substances, making it particularly suitable for scientific research applications.
