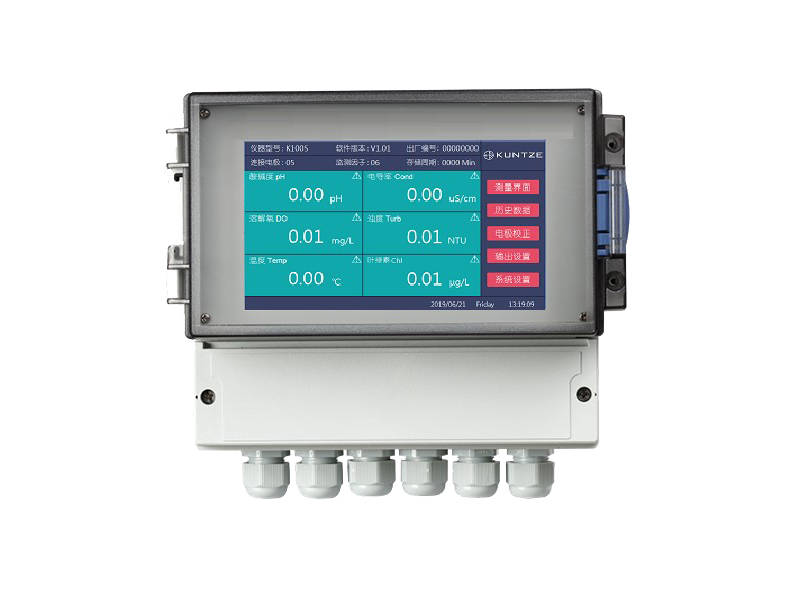

Multiparameter Water Quality AnalyzerShanghai KeZe Intelligence Environment Sci-Tech Co., Ltd.

Multiparameter Water Quality Analyzer designed for measuring pH, temperature, dissolved oxygen, conductivity, turbidity, and other important parameters. This integrated system combines multiple measurement capabilities into a single unit, ensuring enhanced efficiency and ease of use for all operators. It features direct connectivity with smart electrodes and multiparameter electrodes, allowing for seamless integration. The K100S provides real-time display of measurement values and electrode status, facilitating quick and accurate assessments. It is suitable for a variety of application scenarios, including surface water, municipal wastewater, industrial effluent, drinking water, aquaculture,e etc, making it a reliable choice for comprehensive water quality monitoring.

Product Categories

Technical Attributes

Product Feature

Conventional Five Parameters

Performance	Indicator Requirements
Performance	Dissolved oxygen	pH	Conductivity	Turbidity	Temperature
Measurement Principle	Fluorescence method	Glass electrode method	Electrode method	IR90°Light scattering method	PT1000
Measurement Range	0 ~ 20mg/L	0~14	0 ~ 200,000 μS/cm	0 ~ 4000 NTU	0~55 ℃
Repeatability Error	± 0. 3 mg/L	± 0.1 pH	±1％	±3％	±0.5℃
Zero Drift	< 0.1 mg/L	N/A	±1％	±3％	N/A
Range Drift	± 0. 3 mg/L	N/A	±1％	±5％	N/A
Drift	N/A	± 0.1 pH	N/A	N/A	N/A
Response Time (s)	45	15	15	N/A	N/A
Temperature Compensation Error	± 0. 3 mg/L	± 0.1 pH	±1％	N/A	N/A
Linearity Error	N/A	N/A	N/A	±5％	N/A

Optional Parameters

Performance	Indicator Requirements
Performance	ORP	COD	Ammonia nitrogen	Chlorophyll	Blue-green algae
Measurement Principle	Platinum electrode method	UV254nm Law Turbidity compensation by 546nm transmission method	Ion selective electrode method	Fluorescence method 460nm/680nm	Fluorescence method 590nm/650nm
Measurement Range	-2000 ~ 2000 mV	0 ~ 500mg/L 0 ~ 500NTU	0 ~ 100mg/L	0-500.0 μg/L (chlorophyll a); 0 ~ 1000 ppb (Rhodamine WT)	0 ~ 2,000 Kcells/mL
Accuracy	± 1 mV	±10%	±10％	±5％	±5％
Resolution	0.1	0.01	0.01	0.01	0.01
Response Time (s)	15	NC	15	30	30

The analyzer uses a touch screen with a large viewing angle.
The analyzer supports accessing with a password to ensure security
The analyzer adapts the standard MODBUS communication protocol
The analyzer could measure at most 6 different parameters simultaneously
The analyzer supports RTU transmission mode for connecting digital sensors
The analyzer uses more than two sets of relays that can be programmed for either activate alarms or control purpose
The analyzer features an electrically isolated MODBUS RTU interface
The analyzer features a 0/4-20 mA analog output with electrical isolation
The analyzer is capable of storing data for over 90 days.
The analyzer features built-in temperature compensation to ensure accurate measurements.
