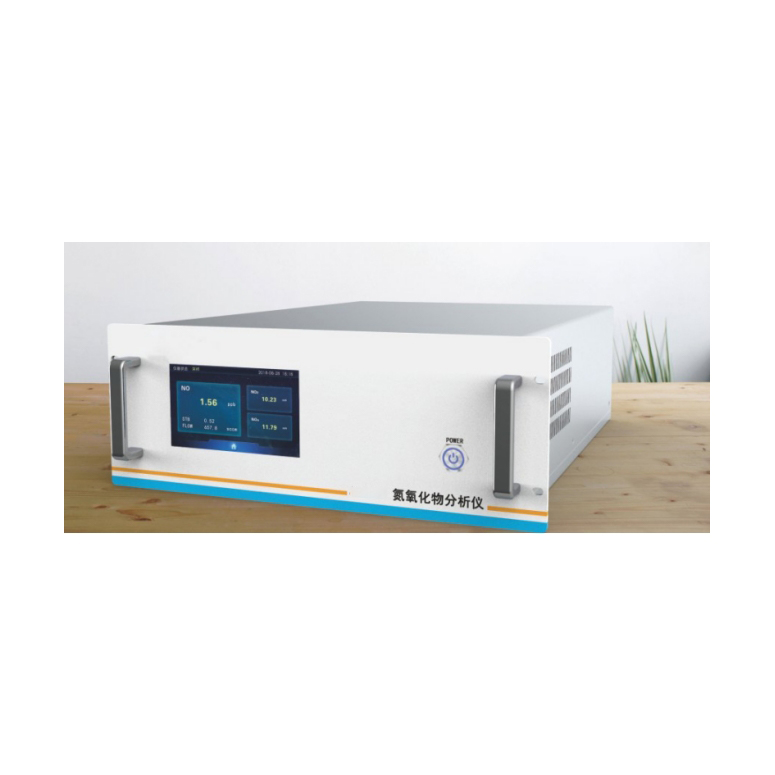

AMS-500 Chemiluminescence NOX Analyzer can detect low concentration (ppb level) NO, NO2 and NOX in ambient air. It is the of the gaseous analyzer of the ambient air quality monitoring system . Its core measurement module is an ozone generator, chemiluminescence reaction chamber and photomultiplier tube . Its principle is to measure the concentration by measuring the fluorescence released by the chemical reaction between NO and O3.
|
INDEX |
NUMERIC VALUE |
|
Range |
0-500ppb、0-20000ppb （Adj） |
|
Units |
ppb，ppm，ug/m3，mg/m3 |
|
Zero Noise |
＜0.2ppb(RMS) |
|
Lower Detectable Limit |
0.4ppb(RMS) |
|
Zero Drift |
＜1ppb/24 h |
|
Span Drift |
＜5ppb/24 h |
|
Response Time |
＜120s |
|
Linear |
＜1%/FS |
|
Repeatability |
＜1% |
|
Sampling Flow Range |
400cm3/min±10% |
|
Ambient Temperature |
5℃—40℃ |
|
Power Supply |
220V、50Hz |
|
Analog Output |
10V、5V、1V、0.1V (Opt) |
|
Optional I/O |
RS232、RS485 |
- The principle of the chemiluminescence method is adopted;
- The measurement range is 0-500ppb, the range is optional, and NO, NO2, and NOX are measured independently;
- The ozone generator is equipped with an osmotic drying tank;
- The PMT driving voltage is adjustable, and the light intensity attenuation of the light source is self-test;
- Unique optical design with strong anti-jamming capability; · Dark current compensation function with high stability;
- Automatic temperature and pressure compensation for sample gas;
- Modular structure design with strong anti-jamming capability, excellent heat exchange ,and convenient replacement and maintenance;
- Color screen display, touch screen operation, automatic storage of historical data;
- Provide a variety of outputs including RS232, RS485, Ethernet, USB, analog voltage output, etc.
